The effects and annual losses attributed to electrostatic discharge (ESD) are estimated to run into the billions of dollars just in the electronics industry alone. That makes Huatong ESD static control vinyl flooring an effective first-choice solution to control unwanted human body voltage in areas where mobility cannot be restricted by wrist straps.
Features
- Conductivity:
It satisfies the electric resistance of UL 779&NFPA 99.
Surface electric resistance:104-106Ω
Static decay time:5.000lts to zero 0.25sec.
- Durability:
Excellect anti-wear,and anti-chemical properties.
- Uniform gauge and color maintenance
- Anti-load property:
There is no problem with machine movement,carrier vehicles or beds.
- Permanent conductivity:
Conductive materials is distributed evenly in entire so that it has permanent conductivity.
- Non-flammable
Conductive tile (installation method)
Proper supplementary materials shall be used for conductive tile installations.The function of electric conduction may be demonstrated only by exact methods of a skilled contractor.
Sequence of installation
- Arrangement and preparation of floor. Dry conditon without contaminants.
- Drawing of tile construction line on floor with chalk line.
- Drawing of construction line of copper tape.
- Application of adhesive (drying time 10-20 minutes after application of electro conductive adhesibe).Use special adhesive only!
- Installation of copper tape
Install so that it will be crossed at center of tile.
Leave allowance of about 12'' for copper tape at the place to be grounded.
- Installation of tile
Select start point of tile construction after adhesive dries.
Install from center of chalk lines.
- Welding of tile connection part
Route V shape groove of about 1/2 times the thickness of tile along tile seam after adhesive harden sufficiently to hold tile in place.
Perform welding with welding machine using PVC welding rod of 3.5 mm diameter.
Level the projecting part of welded part with chisel knife so that it may be level to tilesurface.
- Grounding: Do grounding by connecting ground wire (copper tape) to grounding point if installation of tile is complete.
Maintenance and control
- Remove detergent component completely after cleaning using neutral high quality detergent after removing dust for general cleaning. Rinse at least twice,more if necessary,with clear fresh pure water.
- Clean contaminated parts carefully with mild detergent.
- Do not use wax. If necessary,use polisher.
Uses of tile
- Manufacturing, assembling and inspection factory of semi-conductor company
- Clean room,computer room
- Producting,assembling,laboratory,and test place of electronic product
- Operation room of hospital
- Place to handle explosives and flammable gas
- Access floor
- Telecommunication corporation (electronic switching room,etc.) (finishing material of conduction room)
Supplementary materials
- Copper tape 0.025T x 20mmw
- Electro conductive adhesive: 104-106
- 3.5mm diameter for PVC welding
Material characteristics
| Character |
Testing Method |
Unit |
Test Dimension |
| Specific gravity |
ASTM D792 |
|
1.45 |
| Solidity |
ASTM D2240(Shore A) |
|
85 |
| Dimension stability |
FED. SPEC. SS-T-312B |
% |
0.1less |
| Shock test |
KSM 3802 |
|
normal |
| Surface resistance |
ASTM D257 |
ohm/square |
104-106Ω(conductive)
106-108Ω(dissipative)
|
| 5KV Decay Time |
MIL-B-81705B |
Sec |
0.5 |
| NFPA-56A |
Sec |
0.25 |
specification
| THICKNESS(mm) |
SIZE(mm) |
COLOR |
| 2.0T |
305×305 |
500×500 |
600×600 |
610×610 |

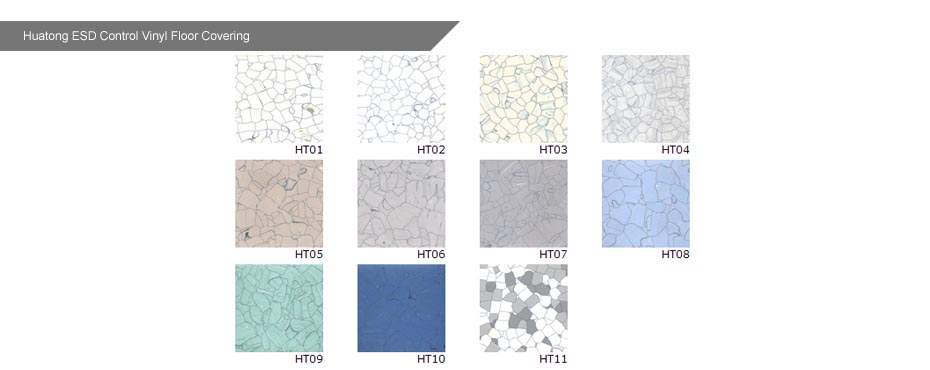

Sample reference |
| 2.5T |
305×305 |
500×500 |
600×600 |
610×610 |
| 3.0T |
305×305 |
500×500 |
600×600 |
610×610 |
